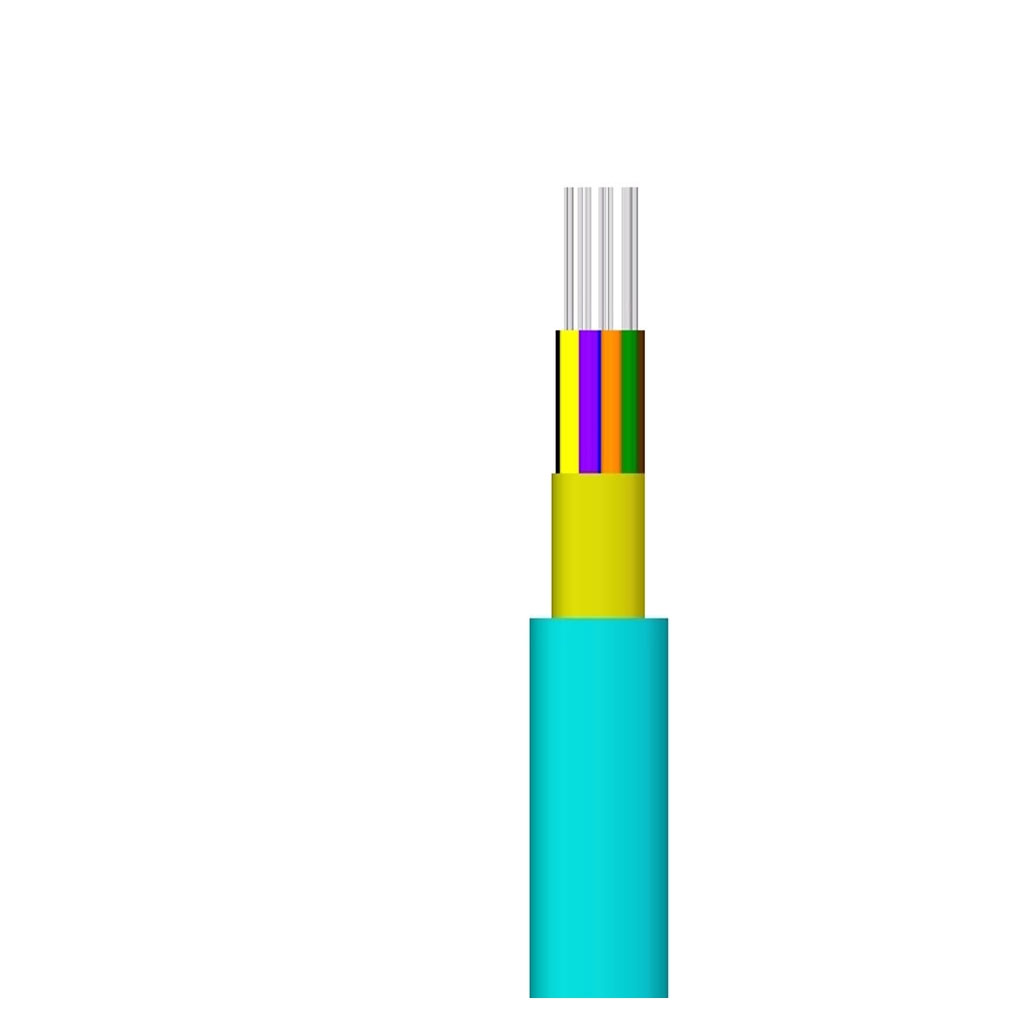

Low Strand Count (2 – 24) OM4 Multimode Fiber Optic Cable

Fiber optic distribution cables are used for telecom room and interbuilding applications.

  • Plenum and Riser Rated
  • Tight buffer construction
  • Aramid yarn strength member
  • UL Listed
  • RoHS and REACH compliant
  • Meets TIA and ISO Standards
Request A Quote
Categories: ,

Description

Fiber Type: OM4
Jacket Type: OFNP, OFNR
Effective Modal BW @ 850nm: 4700MHz-km
Overfilled Launch @ 850nm: 3500 MHz-km
Attenuation @ 850nm (Max): 3.0 dB/km
Operating Temperature Range: -4°F to 140°F (-20°C to 60°C)
Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)
Humidity: 10% to 90% RH

Download

Low Strand Count (2 – 24) OM4 Multimode Fiber Optic Cable Datasheet
